How to Make PCB (printed circuit board) at Home
Website Link : www.link.blogtheorem.com
Hello everyone,
This is instructable is about "How to make PCB at Home" without any special material.As a Electronics Engineering student, I try making DIY projects which require simple electronics circuit and making PCBs.
What is PCB?
A printed circuit board (PCB) mechanically supports and electrically connects electronic components using conductive tracks, pads and other features etched from copper sheets laminated onto a non-conductive substrate.
A printed circuit board has pre-designed copper tracks on a conducting sheet. The pre-defined tracks reduce the wiring thereby reducing the faults arising due to lose connections. One needs to simply place the components on the PCB and solder them.
Different method to make PCB
There are in all three basic methods to make PCB
1. Iron on Glossy paper method

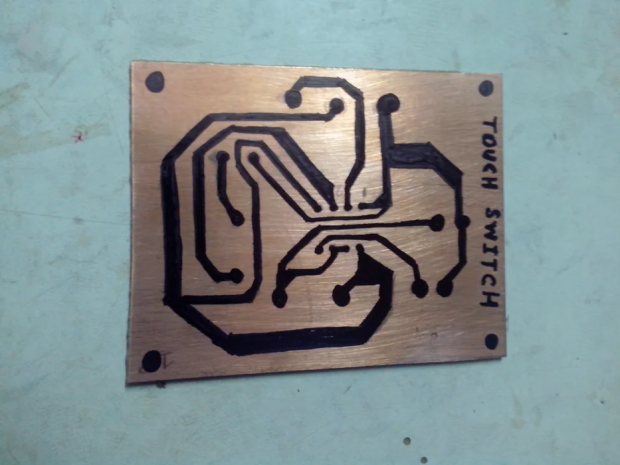

2. Circuit by hand on PCB
3. Laser cutting edge etching.
Since laser method is industrial method to make PCB we will get in detail of first two method to make PCB at home.
